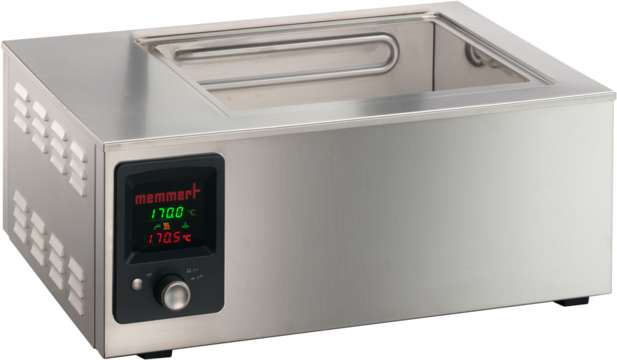

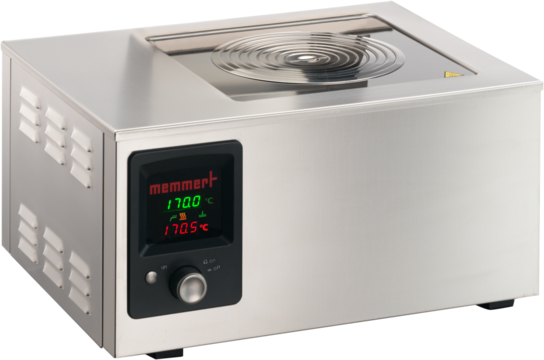

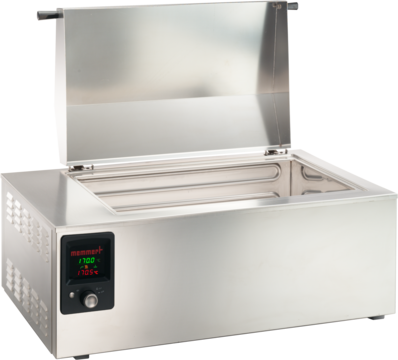

Oilbaths
Memmert oilbaths - absolute safety for laboratory and samples, even at high temperatures through corrosion-resistant stainless steel, precise electronics and multiple temperature protection.
- Fuzzy-supported PID microprocessor controller with integrated autodiagnostic system with fault indication.
- Two Pt100 sensors Class A.
- Digital timer from 1 min. up to 999 hours.
- Digital display (LED) of all set parameters, such as temperature and alarm values (0.1 °C resolution) as well as time values.
- In case of overtemperature due to failure, the heating is switched off at approx. 10 °C above the set temperature (fixed value).
- Independently working, electronic overtemperature temperature limiter TWB (protection class 2).
- Mechanical temperature limiter TB (protection class 1) switching the heating off at approx. 30 °C above max. temperature of the bath.
- Easy-to-clean interior, made of stainless steel.
- Large-area heating on three sides.
| Model/Parameter | 7 | 10 | 14 | 22 | 29 | 45 |
| Volume, l | 7 | 10 | 14 | 22 | 29 | 45 |
| Container length, mm | 240 | 350 | 350 | 350 | 590 | 590 |
| Container width, mm | 210 | 210 | 290 | 290 | 350 | 350 |
| Container height, mm | 140 | 140 | 140 | 220 | 140 | 220 |
| Working-temperature range, °C | at least 5 °C above ambient temperature up to +200 °C | |||||
| Setting temperature range, °C | +20 °C to +200 °C | |||||
| Temperature variation, K | ± 0.3 | ± 0.3 | ± 0.3 | ± 0.3 | ± 0.3 | ± 0.3 |
| Housing length, mm | 468 | 578 | 578 | 578 | 818 | 818 |
| Housing width, mm | 356 | 356 | 436 | 436 | 516 | 516 |
| Housing height (with flat cover), mm | 238 | 238 | 238 | 296 | 238 | 296 |
| Housing height (with gable cover), mm | 337 | 337 | 347 | 405 | 343 | 401 |
| Liquid level min., mm | 97 | 97 | 97 | 177 | 105 | 177 |
| Liquid level max., mm | 120 | 120 | 120 | 200 | 120 | 200 |
| Electrical load at 230 V, 50/60 Hz, W | 1200 | 1200 | 1800 | 2000 | 2400 | 2800 |
| Net weight, kg | 11 | 13 | 15 | 17 | 24 | 26 |
