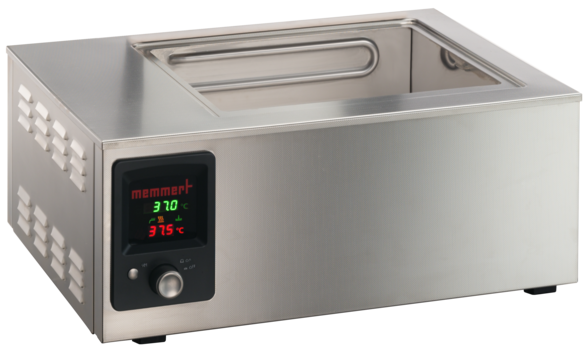

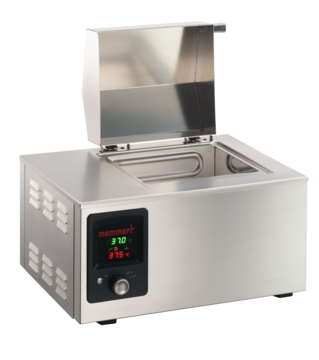

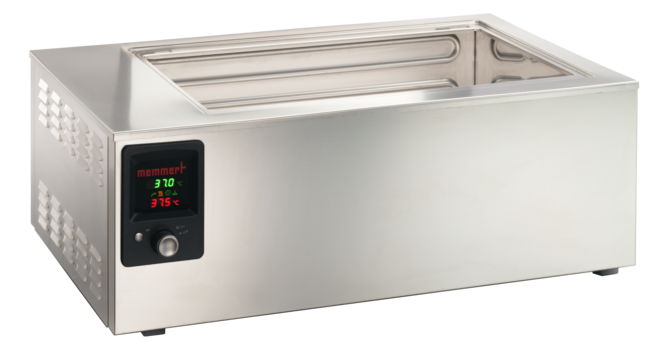

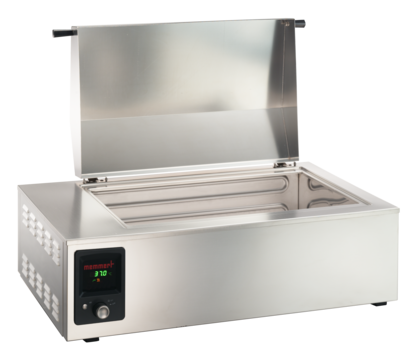

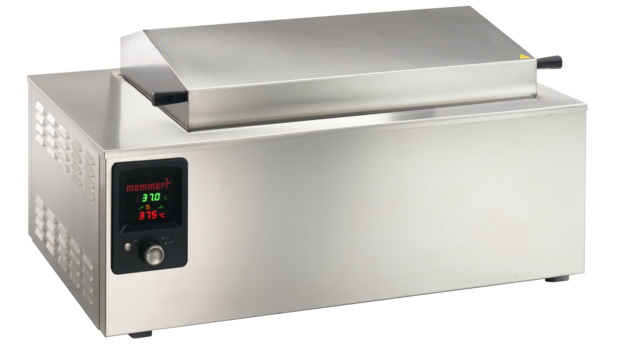

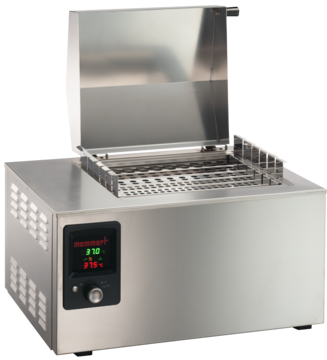

Waterbaths
Memmert waterbaths - that is the combination of high-grade stainless steel with the latest electronics, for maximum functional security and decisive advantages in convenience and ease of operation.
WNB model
- Microprocessor PID-temperature controller with integrated autodiagnostic system and fault indicator.
- One Pt100 sensor class A.
- Digital timer from 1 min. to 99,59 hours.
- Digital display (LED) of set and actual temperature (0.1 °C resolution) and of remaining program time.
- LEDs for indication of program status.
- In case of overtemperature due to failure, the heating is switched off at approx. 10 °C above the set temperature.
- Mechanical temperature limiter TB (protection class 1) switching the heating off at approx. 30 °C above max temperature of the bath.
- Textured stainless steel casing.
- Easy-to-clean interior, made of stainless steel.
- Heating on three sides.
WNE model
- PID microprocessor controller with integrated autodiagnostic system and fault indication.
- Two Pt100 sensor class A.
- Digital timer from 1 min. to 999 hours.
- Digital display (LED) of all set parameters, such as temperature and alarm values (0.1 °C resolution) as well as time values.
- Overtemperature protection and digital level monitor to guarantee secure long-term tests – with visual and audible alarm signals.
- In case of overtemperature due to failure, the heating is switched off at approx. 10 °C above the set temperature.
- Independently working, electronic overtemperature temperature controller TWW (protection class 3.1) or overtemperature limiter TWB (protection class 2), adjustable in set-up menu.
- Resolution of display and setting accuracy: 0.1 °C below 99.9 °C, 1 °C above 100 °C.
- Mechanical temperature limiter TB (protection class 1) switching the heating off at approx. 30 °C above max temperature of the bath.
- Textured stainless steel casing.
- Easy-to-clean interior, made of stainless steel.
- Heating on three sides.
Model/Parameter | 7 | 10 | 14 | 22 | 29 | 45 |
Volume, l | 7 | 10 | 14 | 22 | 29 | 45 |
Container length, mm | 240 | 350 | 350 | 350 | 590 | 590 |
Container width, mm | 210 | 210 | 290 | 290 | 350 | 350 |
Container height, mm | 140 | 140 | 140 | 220 | 140 | 220 |
Working-temperature range, °C | at least 5 °C above ambient temperature up to +95 °C and additional boiling stage | |||||
Setting temperature range, °C | +10 °C to +95 °C and boiling stage | |||||
Temperature variation, K | ± 0.1 | ± 0.1 | ± 0.1 | ± 0.1 | ± 0.1 | ± 0.1 |
Housing length, mm | 468 | 578 | 578 | 578 | 818 | 818 |
Housing width, mm | 356 | 356 | 436 | 436 | 516 | 516 |
Housing height (with flat cover), mm | 238 | 238 | 238 | 296 | 238 | 296 |
Housing height (with gable cover), mm | 337 | 337 | 347 | 405 | 343 | 401 |
Liquid level min., mm | 97 | 97 | 97 | 177 | 105 | 177 |
Liquid level max., mm | 120 | 120 | 120 | 200 | 120 | 200 |
Electrical load at 230 V, 50/60 Hz, W | 1200 | 1200 | 1800 | 2000 | 2400 | 2800 |
Net weight, kg | 11 | 13 | 15 | 17 | 24 | 26 |
