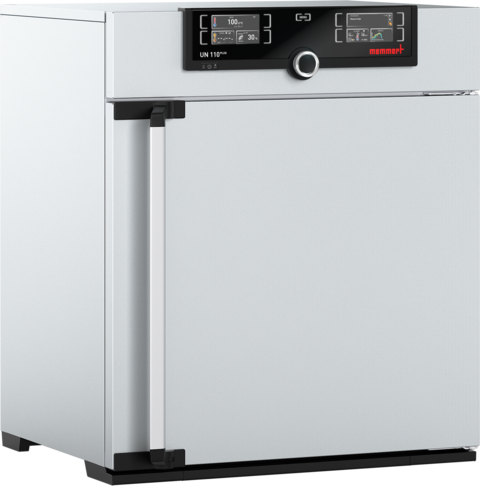

Universal ovens Um
Intended use of the Memmert universal oven Um as a medical device.
Memmert heating ovens Um or Umplus may be used for heating fango, silicate and APS packs for physical therapy and keeping them warm. Memmert is bringing medical devices of class I according to EU Directive 93/42/EEC into circulation until the regulation MDR (EU) 2017/745 comes into force. After the new regulation comes into force, Memmert will bring medical devices of class I into circulation according to MDR.
- Temperature range up to +300 °C.
- 9 model sizes (32 to 1060 litres volume).
- 2 model variants: SingleDISPLAY and TwinDISPLAY.
- Natural convection or forced air circulation N/F.
| Model/Parameter | 30 | 55 | 75 | 110 | 160 | 260 | 450 | 750 | 1060 |
| Volume, l | 32 | 53 | 74 | 108 | 161 | 256 | 449 | 749 | 1060 |
| Interior width, mm | 400 | 400 | 400 | 560 | 560 | 640 | 1040 | 1040 | 1040 |
| Interior height, mm | 320 | 400 | 560 | 480 | 720 | 800 | 720 | 1200 | 1200 |
| Interior depth, mm | 250 | 330 | 330 | 400 | 400 | 500 | 600 | 600 | 850 |
| Max. number of shelves | 3 | 4 | 6 | 5 | 8 | 9 | 8 | 14 | 14 |
| Max. loading per shelf, kg | 20 | 20 | 20 | 20 | 20 | 20 | 30 | 30 | 60 |
| Max. loading of chamber, kg | 60 | 80 | 120 | 175 | 210 | 300 | 300 | 300 | 300 |
| Exterior width, mm | 585 | 585 | 585 | 745 | 745 | 824 | 1224 | 1224 | 1224 |
| Exterior height, mm | 704 | 784 | 944 | 864 | 1104 | 1183 | 1247 | 1720 | 1720 |
| Exterior depth, mm | 434 | 514 | 514 | 584 | 584 | 684 | 784 | 784 | 1035 |
| Electrical load at 230 V, 50/60 Hz, W | 1600 | 2000 | 2500 | 2800 | 3200 | 3400 | |||
| Electrical load at 400 V, 50/60 Hz, W | 5800 | 7000 | 7000 | ||||||
| Net weight, kg | 45 | 57 | 66 | 74 | 96 | 110 | 161 | 217 | 252 |
