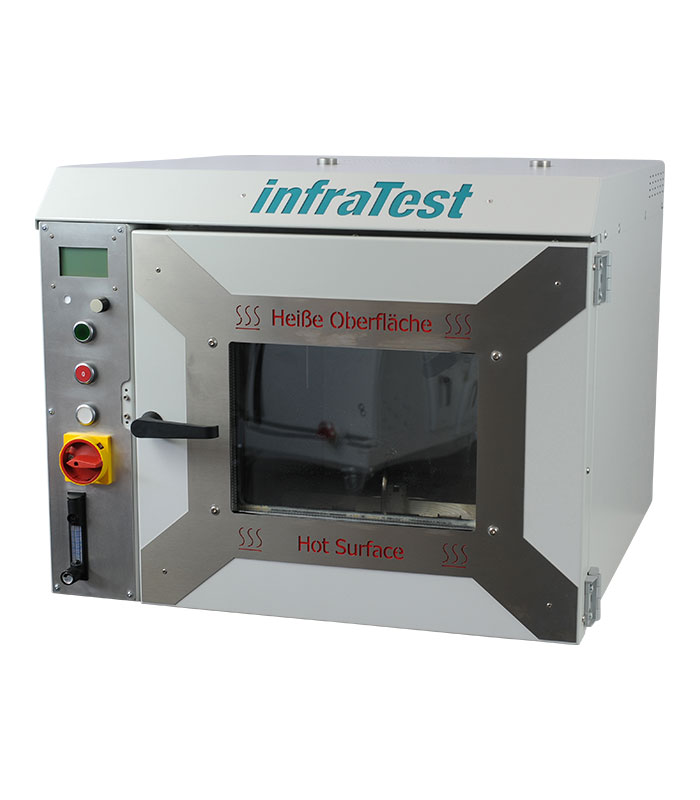

Rolling thin film oven RTFOT

Link to product web site

Standard: EN 12607-1

Rolling thin film oven RTFOT for the determination of temperature and air influence on bitumen.

The temperature controlled oven with door and viewing glass is preset to a test temperature of 163 °C.

The rear inside wall is equipped with a vertical carriage, rotated by an electric motor at 15 rpm and prepared to support 8 glass test cups.

Air jet providing an airflow of 4000 ml/min. to the samples.

Compressed air is necessary for the test.
