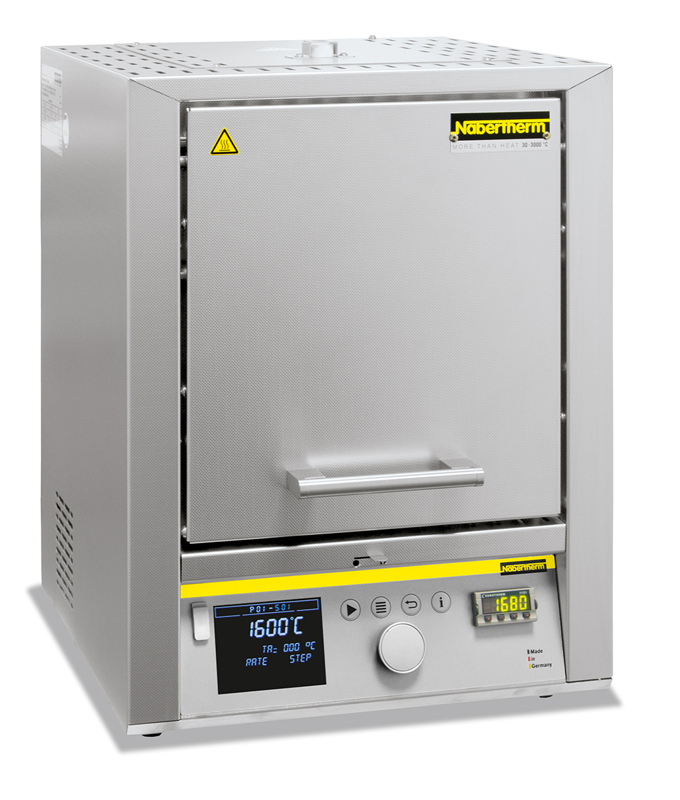

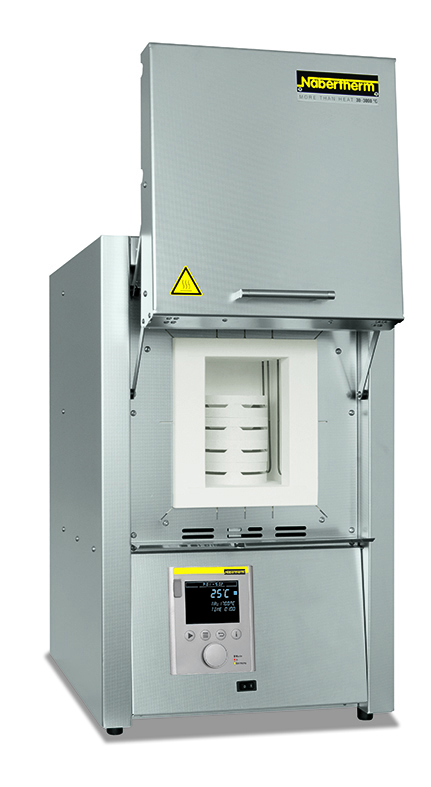

High-Temperature furnaces up to 1800 °C
Designed as tabletop models, these compact high-temperature furnaces have a variety of advantages. The first-class workmanship using high-quality materials, combined with ease of operation, make these furnaces all-rounders in research and the laboratory. These high-temperature furnaces are also perfectly suited for the sintering of technical ceramics, such as zirconium oxide dental bridges.
Tmax 1600 °C, 1750 °C, or 1800 °C.
High-quality MoSi2 heating elements.
Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature.
Compact design with lift door, opening upwards.
Adjustable air inlet.
Exhaust air opening in the roof.
Type B thermocouple.
Additional equipment:
Over-temperature limiter with adjustable cutout temperature.
Protective gas connection to purge with non-flammable protective or reaction gases.
Manual or automatic gas supply system.
Process control and documentation via VCD software package for monitoring, documentation and control.
Model | Tmax, °C | Inner width, mm | Inner depth, mm | Inner height, mm | Volume, l | Minutes to Tmax |
LHT 02/16 | 1600 | 90 | 150 | 150 | 2 | 30 |
LHT 04/16 | 1600 | 150 | 150 | 150 | 4 | 25 |
LHT 08/16 | 1600 | 150 | 300 | 150 | 8 | 25 |
LHT 01/17 D | 1650 | 110 | 120 | 120 | 1 | 10 |
LHT 03/17 D | 1650 | 135 | 155 | 200 | 4 | 60 |
LHT 02/17 | 1750 | 90 | 150 | 150 | 2 | 60 |
LHT 04/17 | 1750 | 150 | 150 | 150 | 4 | 40 |
LHT 08/17 | 1750 | 150 | 300 | 150 | 8 | 40 |
LHT 02/18 | 1800 | 90 | 150 | 150 | 2 | 75 |
LHT 04/18 | 1800 | 150 | 150 | 150 | 4 | 60 |
LHT 08/18 | 1800 | 150 | 300 | 150 | 8 | 60 |
