Transformers come in all power classes and are used in both industrial applications and in the area of consumer goods. They are used to transform voltages and currents.

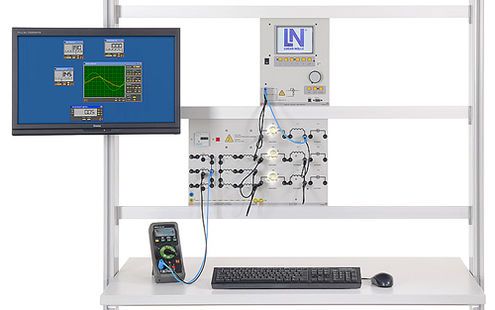

This training system is based on a transformer with a power level of 100 VA. The training system covers investigations into single-phase and three-phase transformers.

ENT 5 Single-phase and three-phase transformers

• Isolation transformers and autotransformers.
• Design and connection.
• Equivalent circuit diagrams.
• Transformation ratios.
• No-load and short-circuit experiments.
• Vector groups used in three-phase transformers.
