Providing highest flexibility for every application.

The Dist Line is extremely versatile and is designed for a broad range of analytes while offering the highest operational safety. The instruments perfectly fit your individual needs and enable the highest performance in the most flexible way.

Adjustable steam power: 10 - 100 %, programmable steam ramps.

MaxAccuracy mode: yes.

Sample parameters: alcohol, essential oils, sulfite, cyanide, phenol, formaldehyde, volatile acids, VDKs, nitrogen (TKN, TVBN), nitrite.



Experience highest convenience & safety

  • Perform a broad variety of applications for a versatile analysis.
  • Intuitive touch screen for easy process handling.
  • Upgradeable on demand to automate your analysis in the most convenient way.

Maximize accuracy & performance

  • Automatic recognition of distillation start for perfect reproducibility.
  • Distillation endpoint is recognized automatically for highest accuracy.
  • Automated titration with connected titrators for minimum user interaction.

Work securely & save time

  • Innovative sensor technology minimizes exposure of the user.
  • No preheating required resulting in higher time-efficiency.
  • Automated distillation & titration enables unattended operation.
  • Intelligent cooling water control for lower water consumption.

Aspiration: For more convenience and easier sample handling, Büchi offer configurations with sample tube and receiver waste aspiration. This saves time and allows for smooth operation of the instrument.

AutoDist function: This function recognizes the start of the condensation process and adjusts the distillation start time automatically in the individual measurement.

Automatic titration: Automated titration is key to achieving the highest performance possible in Kjeldahl protein determination. Titration dosage, as well as endpoint recognition via suitable electrodes, is carried out automatically. This allows for minimum user interaction and high throughput at the same time.

Cooling water control: The cooling water control automatically saves water by intelligent flow limitation. This feature saves approximately 20 % of water during determinations.

OnLevel sensor: The sensor stops the distillation automatically after a defined condensate volume is reached. Obtain reproducible condensate volumes independent of the system lifetime.

Reaction detection sensor: It can save up to 30 % of NaOH reagent solution for the alkalization process so that you can work more cost-efficiently and environmentally friendly.

MaxAccuracy mode: In order to avoid supply voltage deviations, a voltage stabilizer is integrated to maintain the required supply voltage. This enhances measurement accuracy and ensures highest reproducibility for every result.

Splash protectors: Glass and plastic splash protectors are available. Glass splash protectors enable you to monitor the process to support method development and optimization. Plastic splash protectors are more robust and durable. Depending on the application, different splash protector variants enable the best performance.

Large touch screen: The intuitive touch screen provides fast feedback and enables easy process handling.

Safe operation: The Dist Line instruments reduce user exposure to a minimum thanks to innovative sensor technology. Safety sensors monitor cooling water flow, steam generator pressure and if the sample tube is put correctly in place. Tank level sensors detect water, waste and reagent levels. The safety shields are fully transparent and equipped with secure control sensors. If the safety shields are opened during operation, the process is stopped automatically. The steam power is adjustable (10 - 100 %) and steam ramps are programmable to handle foaming samples.

Upgradeable on demand: With our versatile components, you can easily upgrade and automate your system for highest convenience. The modular design allows you to achieve an optimal combination of features to suit your individual needs.

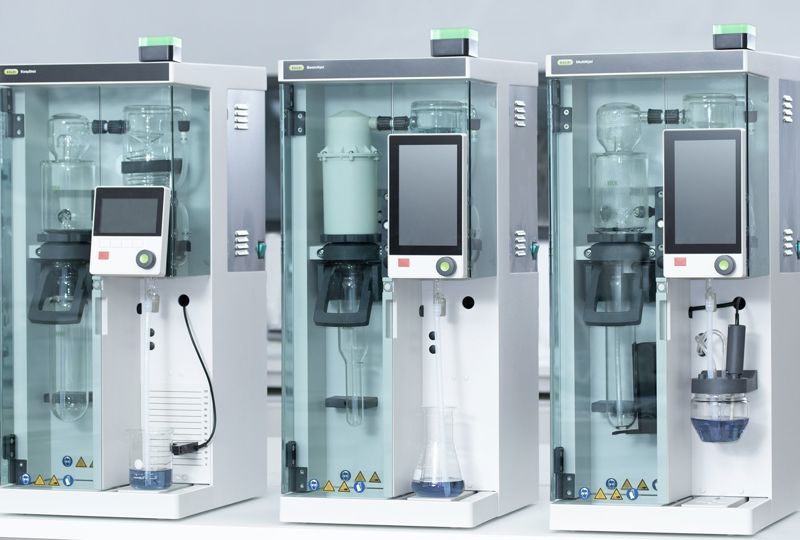

Characteristics / Model

EasyDist

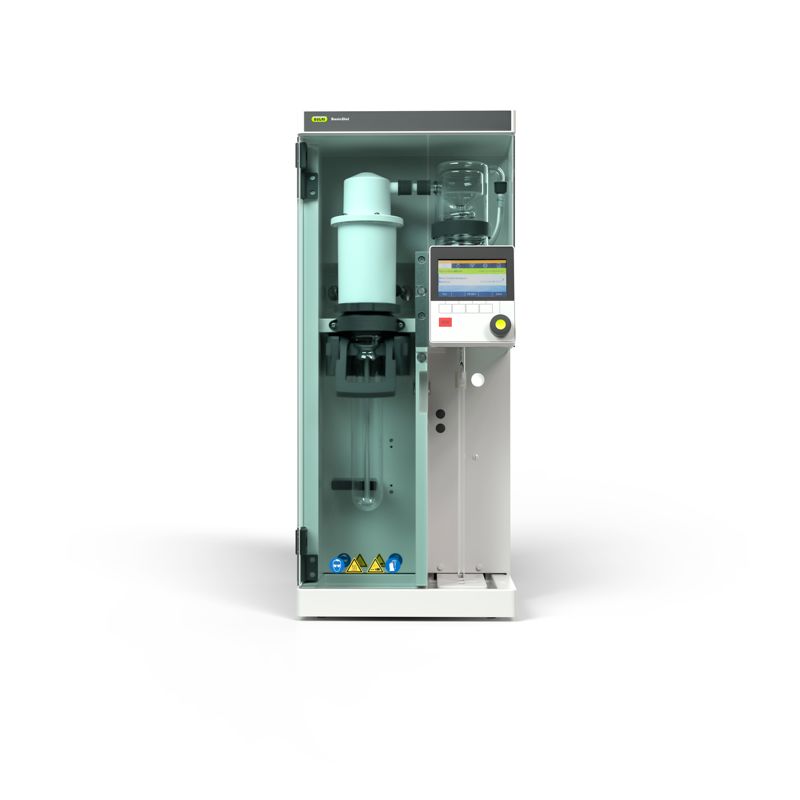

BasicDist

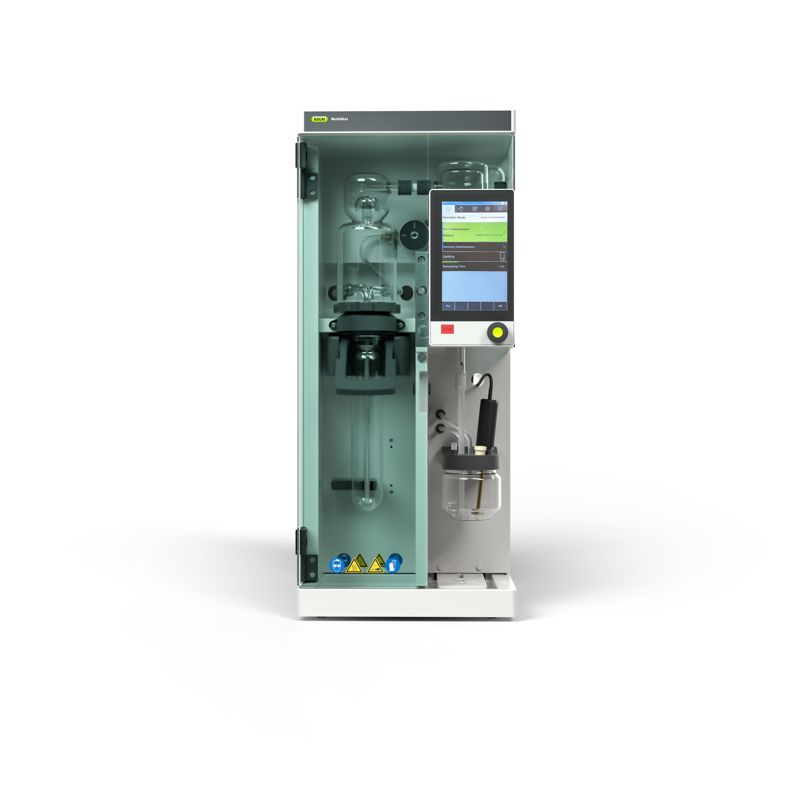

MultiDist

Color display

 Yes

 Yes

 Yes

Acid pump

No

Yes

Yes

Alkalization with NaOH pump

No

 No

 Yes

Dilution with water pump

No

 No

 Yes

AutoDist function

 No

 Yes

 Yes

Sample disposal

 No

 Optional

 Yes

Touch screen

 No

 Optional

 Yes

Receiving solution disposal

 No

 No

 Optional

Titrator connection

 No

 No

 Optional

Analytes

 Alcohols, vicinal diketones, essential oils

Alcohols, vicinal diketones, essential oils, cyanide, formaldehyd, phenol, sulphur dioxide, volatile acid

Alcohols, vicinal diketones, essential oils, cyanide, formaldehyd, phenol, sulphur dioxide, volatile acid, Total Volatile Basic Nitrogen (TVBN), casein, nitrate, nitrogen, Non Protein Nitrogen (NPN), Total Kjeldah Nitrogen (TKN), urea
