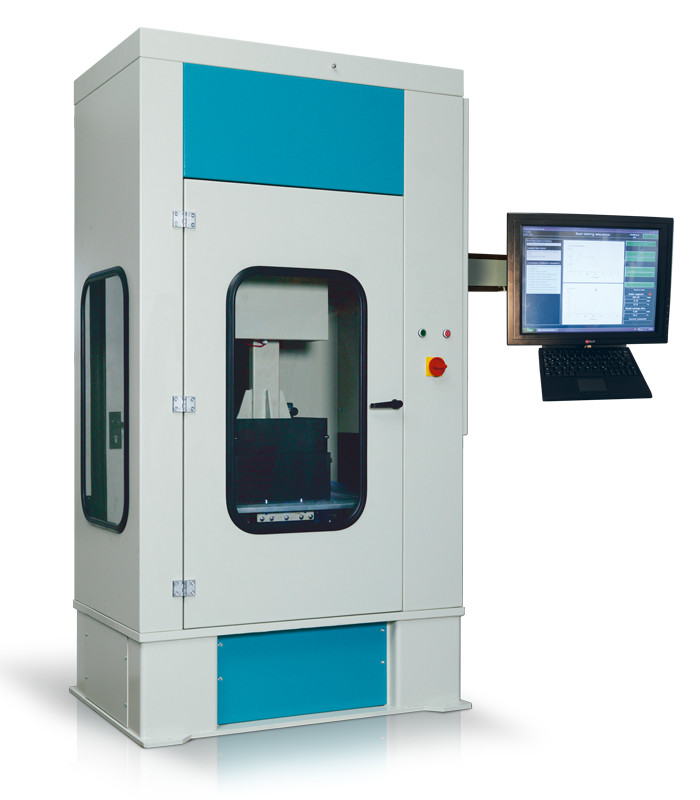

Roller sector compactor

Link to product web site

Standards: EN 12697/33 Part 5,2 - AASHTO

Roller sector compactor for the preparation rolled asphalt samples with a height of 40 - 120 mm.

Rigid steel housing with safety door and motor driven sample guiding unit.

Compaction load is applied horizontally by an electronically operated load/displacement controlled system with a roller segment and load and displacement transducers.

Mould and roller segment are equipped with thermostatically controlled electric heating elements.

The whole process is controlled by selectable compaction programmes via Windows software.

The user himself can create and memorize own test sequences.



Rolling force: 0 - 30 kN.

Rolling speed: 45 overpassings/min.

Sample height: 40 - 120 mm.



20-4030 Roller sector compactor 30 kN, 320 × 260 mm

  • Sample dimensions: 320 x 260 mm.

20-4031 Roller sector compactor 30 kN, 410 × 260 mm

  • Sample dimensions: 410 x 260 mm.

20-4035 Roller sector compactor 30 kN, 400 × 300 mm

  • Sample dimensions: 400 x 300 mm.

20-4034 Roller sector compactor 30 kN, 455 × 300 mm

  • Sample dimensions: 455 x 300 mm.
