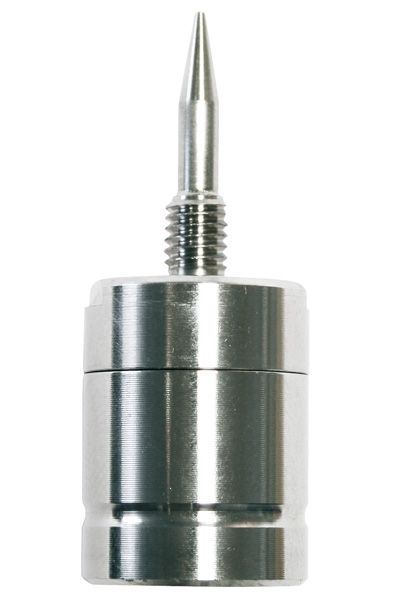

Robust logger for pasteurization EBI 11-T210
Minature data logger to measure inside the product
The temperature data logger can be used universally and is used for pasteurization control during production. It is characterized by its small size and can be incorporated into the product in most cases.
Benefits:
• small size
• Versatile
• robust data logger
Applications:
• Pasteurization Control
• Food Safety
• PU value determination
• F0 Value calculation
Product number: 1340-6260
Technical data
| Data memory | 15.000 measurement values |
| Sensor | Axial, pointed Ø3 mm, probe with M5 external thread, Pt 1000, class A |
| Weight | approx. 45 g |
| Accuracy | ±0.1 °C |
| Protection class | IP68 |
| Dimensions | ø 16.5 x 24 mm (without probe) - Needle length 20 mm |
| Resolution | 0.01 °C |
| Certificate | Factory Calibration: 0 °C, +60 °C and +134 °C |
| Measured variables | temperature |
| Intervall | 1s...24h |
| Battery | Battery 2 x 3 V |
| Measuring range | -30 °C...+140 °C |
| Storage temperature | -20 °C...+70 °C |
Standards and Directives:
• FCM EN 1935/2004 Food Material
• 2014/30/EU The EMC Directive 2014/30/EU regulates the electromagnetic compatibility of equipment
For further information, e.g. overview of Accessories, please visit Producer website.
